    Introduction

    Congratulations and thank you for purchasing a LapSafe® FLEX™ Locker Tower solution. This online resource will guide you through the correct use of the product.

    Overview

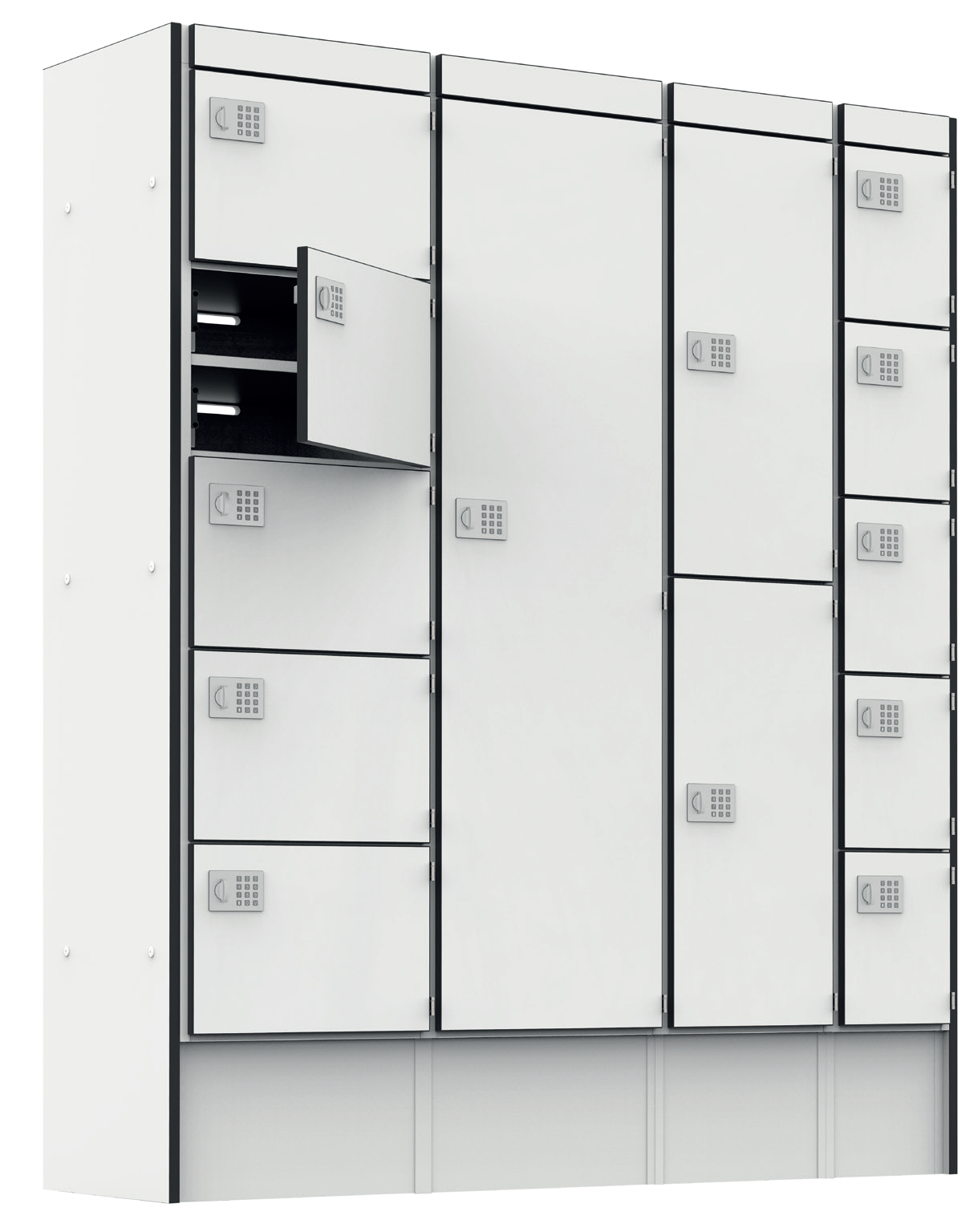

    Your FLEX ™ Locker Tower is supplied fully assembled and correctly installed.
    Each locker has its own individual lock and there are separate instructions for the use of the locks fitted on your particular FLEX™ Tower.

    There is a manufacturing option to have a power socket and two USB changing sockets inside some, or all, of the lockers. The power to the locker sockets, if fitted, is managed through a Power Cassette that is fixed on the top of your FLEX™ Tower.

    Box Contents:

    1x User guide
    1x Set of keys per tower
    1x Lock user guide

    Locker Door Operation

    Once the door lock is released the hinges allow the locker door to swing freely until it meets an obstacle. There is no ‘bump-stop’ built into the hinge so care must be taken when opening a locker that there is sufficient clear space for the door to move into.
    Do not let go of the door while it is moving and do not force the door in either direction. Both of these actions could damage the door or the locker carcase or an adjacent locker unit.
    Should a door become misaligned in use there is adjustment in the hinges. In the centre of the hinge-cup in the rear of the door there is a screw that can be loosened to allow re-adjustment.
    Re-tighten the screw after any adjustment.

    Power Socket (when fitted)

    The locker power sockets provide power for small loads up to a maximum of 3amps on a 240V supply or 1.5amps on a 120V supply which is sufficient for powering an AC adapter to charge a device.

    UNDER NO CIRCUMSTANCES SHOULD A HEAVY LOAD BE PLUGGED INTO A LOCKER SOCKET

    USB Charging (when fitted)

    The locker power and USB sockets provide power for small loads up to a maximum of 3 amps on a 240V supply, which is more than sufficient for powering an AC adapter to charge a device.

    UNDER NO CIRCUMSTANCES SHOULD A HEAVY LOAD BE PLUGGED INTO A LOCKER OUTLET


    The USB charging provides 5 volts DC and up to 2.1 amps of charging current which will be shared between the two sockets. Therefore, a single device can draw up to the maximum and two devices will share the maximum available charging current.


    Please note: Shared charging can be slower than single device charging.

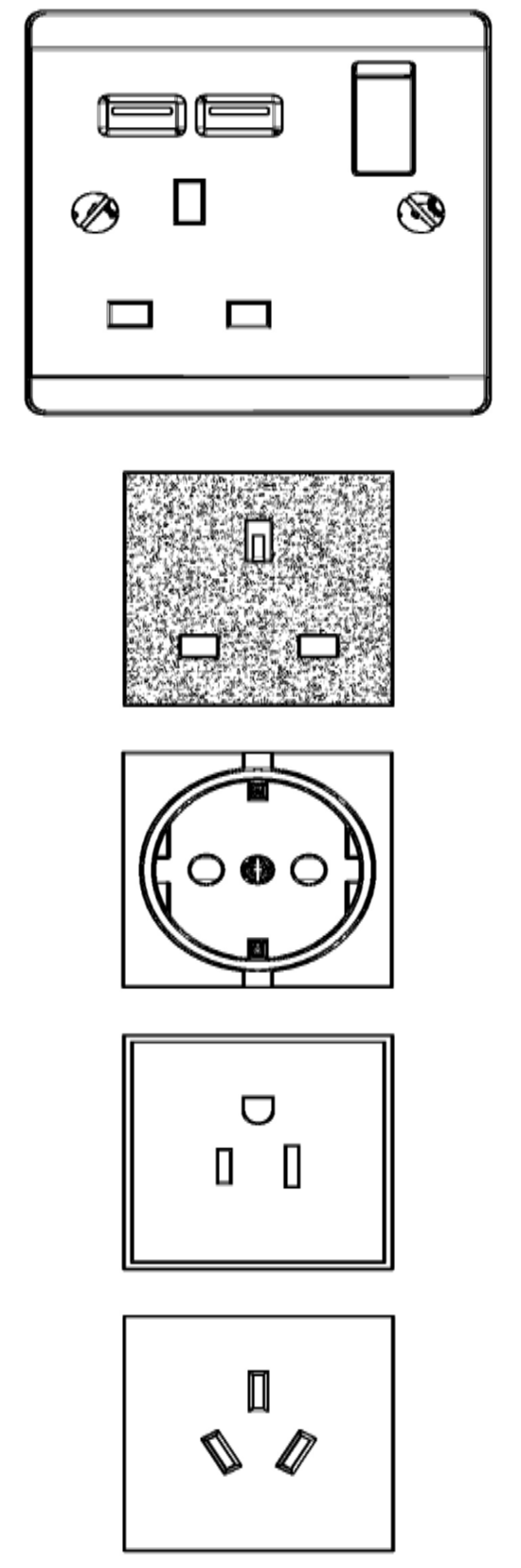

    Available International Socket Types



    • Type G

      UK mains socket with twin USB ports





    • Type G

      UK mains socket



    • Type F

      EU Schuko mains socket



    • Type B

      US NEMA 5-15 mains socket



    • Type I

      Australia/New Zealand mains socket



    Power Cassette (when fitted)

    The power cassette on the top of your FLEX™ Locker Tower may get warm when it is managing a higher electrical load for a period of time and because of this possibility the ventilation holes in the cassette should not be obstructed.
    In the United Kingdom the detachable mains lead to the power cassette will carry a fuse in the wall plug for the protection of users. In the event that your FLEX™ Locker Tower has been installed with no wall plug the power cassette also has a resettable trip which is alongside the mains input socket. This trip acts in much the same way as a fuse to protect users and it can be re-set. When the has operated, the centre of the button will extend by approximately 12mm.

    In the event of a trip

    1. Switch off the power supply and then check if the reason for the tripping is apparent and If possible correct the issue.
    2. Allow at least 60 seconds after it has tripped and do not reset the trip with the mains power switched on.
    3. Press the centre of the button back into the trip. When re-set the button will stay pressed in when you release your finger.
    4. Restore power to the power cassette and check that the trip remains set.
    5. If the trip operates again you should first switch off the mains and then switch off or unplug everything in the locker sockets.
    6. Re-set the trip (steps 2 and 3 above)
    7. Restore power to the power cassette and check that the trip remains set.
    8. Then, one by one, re-plug everything into the locker sockets, switch on and check that the trip remains set.

    If the trip will not re-set or it continues to trip, there may still be a fault somewhere or the trip may have developed a fault so please contact our customer support desk: 01787 226166 OR 0800 130 3456

    Cleaning

    Your FLEX™ Locker Tower is manufactured from Melamine Faced Board and most marks or dirt will be removed using a mildly soapy cloth.

    Do not soak the boards with any liquid and do not get the power cassette or the locker sockets wet at all.

    To remove more stubborn marks or perhaps an adhesive residue you can use a gentle solvent such as white spirit or a mild solvent-based cleaner. Again, do not soak the boards with solvent and do not get the power cassette or the locker sockets wet at all.

    Do Not use solvent cleaners on the locks. The locker door hinges are maintenance free and should not require lubrication.

    Explanation of Symbols

    Electrical Hazard

    This unit is recommended for use with a switched wall socket.

    Caution

    Before connecting or removing the mains plug, ensure that the wall socket is in the 'off' position.

    No Liquid

    Avoid all contact with liquids

    Refer to User Manual

    See User Manual for guidance
    		Protective Earth Icon

    CE certification mark

    This product is CE Certified

    UKCA certification mark

    This product is UKCA Certified

    Disposal

    The crossed-out wheelie-bin symbol on your product, battery, literature or packaging reminds you that all electrical and electronic products and batteries must be taken to separate collections at the end of their working life. Do not dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority.



    Useful Links

    Support Enquiries:
    Warranties:
    Warranty Activation: www.lapsafe.com/activate
    Warranty Details: www.lapsafe.com/warranty
    Replacement Keys:

    Declaration of UKCA and CE Conformity

    The certificate of UKCA and CE conformity for the FLEX™ range is available for download at the bottom of this page.
