Introduction
Congratulations and thank you for purchasing a ChargeLite™ Locker 32 from the LapSafe® ChargeLite™ range.
This manual guides you through the set-up and correct use of your product.
Your ChargeLite™ Wall comes with a lifetime parts and labour warranty which you will need to activate immediately.
This online resource guides you through our recommendations for the set-up and correct use of your locker.
The ChargeLite™ Locker 32 comes in two variations:
- AC Adapter Charging Model
- USB-C Charging Model
Box Contents:
1 x ChargeLite™ Locker 32
1 x Set of Keys
1 x Plug timer
1 x Pack of cable ties
2 x Boxes of USB-C charging cables (USB-C models only)
2 x Boxes of data transfer cables (if Data Transfer is fitted)
1 x PIN/MIFARE lock user guide (if PIN or MIFARE lock is fitted)
If you have purchased another model in the ChargeLite™ range, see the links to the following manuals below.
ChargeLite™ Trolley User Manual
ChargeLite™ Desk User Manual
ChargeLite™ Wall User Manual
Power Requirements
AC Adapter
5A rated lead put per power strip
Input: AC 100-240V 13A
USB-C
1600W maximum
Input: AC 100-240V 13A 50/60HzAC
Bay Sizes
For guidance when loading your ChargeLite™ Locker 32, the bay dimensions are as follows:
- Width: 280mm
- Depth: 400mm
- Height: 33mm
Important Actions
Upon delivery of your new ChargeLite™ Desk you must:
Activate Your Warranty:
Visit lapsafe.com/activate to activate your Lifetime Warranty.
Your warranty will not be valid unless you do this.
Take Note of Serial Numbers:
Take a note of your product serial number, located on the silver plate on the back of the unit. The product serial number begins with CL (on older models it will begin with 'CB').
Store this number in a safe place. You will need to quote this number for all enquiries relating to your unit.
Take Note of Key Numbers:
Take a note of your key number located on the key itself (figure 1). Store this number in a safe place. You will need to quote this number if you wish to order additional keys.
Read Health & Safety Information:
Read the section on Health & Safety.
PIN & MIFARE® Locks
If you have PIN or MIFARE® locks fitted please refer to the relevant user guide below.
PIN lock user guide: KL1000 G3
MIFARE® lock user guide: KL1000 RFID
Get Started With Your ChargeLite™ Locker 32
Your ChargeLite™ Locker 32 is supplied fully assembled, tested and ready for installation.
The power to the sockets is controlled through a Power Management Cassette that is fixed in the top of the side compartment of your ChargeLite™ Locker 32.
Your ChargeLite™ Locker 32 is supplied with a 2 metre mains lead.
Installation
Anti-Topple Bracket
The ChargeLite™ Locker 32 is floor standing and because of its weight it MUST be secured to a wall to prevent risk of it toppling.
An adjustable, anti-topple bracket is integrated into the top of the locker and can be adjusted to reach across a gap of up to 75mm to the wall.
Always use suitable fixings for the construction of the wall.
WARNING: Because surfaces vary widely and the fitting location and method of fixing is out of LapSafe®’s control, it is imperative that you consult with appropriate engineering, architectural, or construction professional to ensure that your ChargeLite™ Locker 32 is affixed properly and that the substrate is suitable to handle applied loads.
Positioning
We recommend a gap of at least 150mm is left between the right side of locker and the next item of furniture or wall.
This is to ensure an appropriate space to access the Side Service Area, mains power connection and fan (if fitted).
Door Operation
The front door hinge allows the locker door to swing through approximately 150 degrees until it meets the side of the locker.
- Do not let go of the door while it is moving.
- Do not force the door in either direction.
Both of these actions could damage the door or the locker carcase.
Locks & Keys
Each ChargeLite™ Locker 32 has a camlock keyed lock on the front door as standard and two additional, ‘keyed alike’ locks for access to the side compartment the lower front compartment.
We publish separate instructions for the use of the locks fitted on your particular ChargeLite™ Locker 32.
The side compartment contains the power sockets for your AC adapters (AC models), or power banks (USB-C models).
Access to the Side Service Area
To access the sockets, USB-C power banks and power management cassette you will need to access the door on the right side of the locker.
This can be opended using one of the keys with the black cover.
This door should only be used for set up and maintanance and not considdered day-to-day use.
This door should only ever be accessed by and authorised person.
- Unlock the right side compartment door
- Tilt the top of the door outwards.
- There is an earth strap onto the top of the door which will need to be disconnected by pulling the connector off the tab. (This connection must be reinstated when the door is replaced).
- Then gently lift the door out of its slots in the base of the locker and place it to one side.
NOTE: The earth strap MUST be re-connected before the door is replaced.
Charging Set Up
AC Adaptor Charging Model
Please ensure the cabinet is unplugged when you are loading AC Adaptors in the ChargeLite™.
First the side service area (as above).
Now the sockets and AC adapter storage shelves can be accessed.
There are two styles of AC adaptor:
- In-Plug AC Adaptor - where they plug directly into a socket and the charging lead goes directly to the device (figure 4)
- In-Line AC Adaptor - where they have a mains lead between the power socket and the AC adaptor and then a charging lead going to the device. (figure 5)
‘In-Plug AC Adapters' can be plugged directly into the sockets and the changing lead passed through the grommeted holes at the front of the locker.
‘In-Line AC Adapters' can be loaded onto the shelves and secured behind the elastic strap before passing the charging leads through the grommeted holes and plugging the power leads into the sockets.
The locker power sockets are designed to provide power for small loads up to a maximum of 90 watts per socket (nominal rating of the AC adapter).
- UNDER NO CIRCUMSTANCES SHOULD A HEAVY LOAD BE PLUGGED INTO A SOCKET.
As standard, Type G UK power sockets are installed, but there is a manufacturing option to have Type C/Type F Schuko Euro power sockets.
USB-C Charging Set Up
First the side service area (as above).
You will find the two USB-C power banks installed vertically in the side.
You will find the USB-C to USB-C charging leads provided in boxes inside the bottom of the service area (figure 6).
Remove the cables from the packaging.
NOTE: Connect the USB-C cables the correct way:
- The straight end of the USB-C connectors plug into the the power banks. (figure 8)
- The right-angled USB-C connectors connect the devices on the shelves.
Thread the cables through to the bays as described in the Positioning the Charging Leads section. Ensure to connect the leads in a top down order, and to pass the leads through each gromet.
The cables must be tied onto the shelves in the front right corner before being positioned on the shelves. There are holes in front of each gromet for securing the cables.
Open the bag of white cable clips. These hold the charging leads in place on the ChargeLite™ shelves.
Install the white cable clips into the bays by pushing them into the holes provided at the front of the shelves. Different positions are available at the left and right hand side of the locker bays.
Then thread the cables through the white clips you placed previously.
-
These clips hold the cables in place and stop the leads from being pushed off the shelf.
Figure 12: Threading the charging leads through the cable clips
Plug the devices in. Check that the LED display turns on when the device is plugged in.
LED Charge Status
The LED charge status indicator bar is located above the doors of the ChargeLite™ (figure 13). The LEDs on this bar display the following:
- OFF - The LED is turned off when no device is plugged in/charging
- RED - The LED is red when the device is charging
- GREEN - The LED is green when the device is fully charged or near full charge.
The USB-C charging cables also have LEDs at the ends of the USB-C connectors
- RED - The LED on the USB-C charge cable is red when the device is charging
-
BLUE - The LED on the USB-C charge cable is blue when the device is fully charged
Figure 13: USB-C charge status display
Positioning the Charging Leads in the Bays
This step applies for both AC adapter charging and USB-C charging models.
Open the front door consider where the charging lead needs to be positioned on the shelf based on the device that is to be stored and charged.
On the front right corner of each shelf there is a cable management slot that will hold the charging lead at the correct length to reach the charging port of the device. Make a small loop in the charging lead and pass it onto the slot. (The lead can be installed in the slot on the same shelf as its device or in the shelf above – whichever works best for your devices)
Feed any excess lead back through the to the service area.
Power Management Cassette
The power management cassette in the top of your ChargeLite™ Wall may get warm when it is handling a significant electrical load for a period of time and this, in turn, may make the top of the locker feel warm to the touch. This is completely normal and will cool down when the power demand reduces.
Thermal Trip
In the United Kingdom the detachable mains lead carries a fuse for the protection of users.
In the event that your ChargeLite™ unit has been installed with no wall plug, the power management cassette also has a resettable thermal trip. This trip acts in much the same way as a fuse, to protect users and once tripped it can be re-set.
The thermal trip is mounted on the back edge of the power management cassette in the top of the side compartment. When the trip has operated there will be no power to the sockets and the centre button of the trip will be extend by approximately 12mm.
In the event of a trip:
- First - Switch off the power supply.
- Check if the reason for the tripping is apparent. If possible correct the issue.
- Do NOT reset the trip with the mains power switched on.
- Allow 60 seconds after it has tripped before switching the mains power on.
- Re-set the trip - Press the centre of the button back into the trip. When re-set the button will stay pressed in when you release your finger.
- Restore power to the power and check that the trip remains set.
- If the trip operates again you should first switch off the mains and then switch off and unplug everything in the locker sockets.
- Re-set the trip (as above)
- Restore power to the power and check that the trip remains set.
- Then, one by one, re-plug everything into the locker sockets, switch on and check that the trip remains set.
If the trip will not re-set or it continues to trip, there may still be a fault somewhere or the trip may have developed a fault. Please contact Support on 01787 226 166 or support@lapsafe.com
Timer
View the timer user manual here
ChargeLite™ Wall lockers have a plug in timer included as standard. This allows you to set active usage periods and to prevent using excess power when needed.
You can locate the timer on the top AC Adapter block inside your unit.
Remove the timer, plug the timer into the wall and then plug the locker charging lead into the timer.
NOTE: The timer requires charging before initial use. When you first use the timer the LCD display may not be illuminated. It is recommended to charge the timer for 14 hours after the initial installation to charge the memory back-up battery.

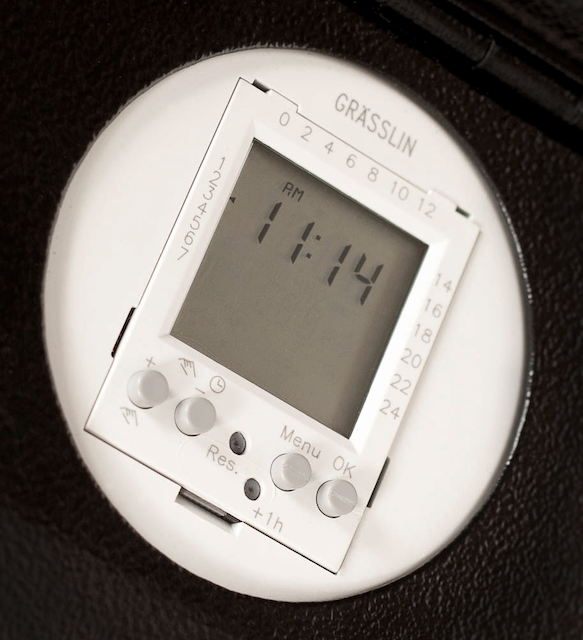

Legacy Timer Model
On older models, the timer was offered as an additional option. This style of timer can be found located behind an oval plate on the rear of the unit.
You can view or download the manual for the legacy timer module here
Network Connectivity
If your ChargeLite™ features network connectivity, you can plug the ChargeLite™ into your network by connecting a standard network cable into the auxiliary point.
Below the front door there is a key controlled compartment that is ready to house a network switch or switches (Netgear JSG524 or similar).
Power for the network switch(es) can be fed down from the socket compartment into this compartment through the 30mm hole at the rear.
The network leads can pass up into the side compartment through the rectangular cut-out at the front of the locker.
An up-link lead can be passed through the hole at the right, rear of the locker, just above the power connection socket.
Adjust the length of the network leads onto each storage shelf and use the stud fixings beneath the fan cut-outs on the side of the locker to secure them in position.
Data Transfer (DTK)
If your purchase includes DTK your ChargeLite™ will be supplied with sufficient network cables to connect each device to the installed network switch.
Care & Maintenance
Do:
- Lock your ChargeLite™ Locker 32 when not in use
- Keep the keys in a safe place - not in the same room as the unit
- Read the Health and Safety guidelines in the user guide and share this information with all users
- Activate your warranty at on the LapSafe® website
- Unplug charging leads before removing devices out of the locker
Do Not:
- Do not leave keys in the doors
- Do not remove doors
-
Do not try to modify the ChargeLite™ in anyway without contacting LapSafe® first to check that it is safe to do so.
If you have any queries, please contact us through any means below in the Useful Links section.
Cleaning
Before carrying out any cleaning, or accessing the service area, disconnect the mains power.
Disconnecting the unit from the mains supply
Your ChargeLite™ unit is connected to the mains supply via a mains lead. There is an IEC connector at one end (plugs into the unit), and a 13amp mains plug at the other (plugs into the wall mains outlet).
13 amp Mains Plug (Switched)
Switch OFF the outlet and remove the plug from the socket. If access to the service area is required, you can only gain access by removing the IEC plug to ensure the unit is not plugged in.
DO:
- Your ChargeLite™ has a powder coat finish which is very durable and can be wiped clean using a mildly soapy cloth.
- To remove more stubborn marks or perhaps an adhesive residue you can use a gentle solvent such as white spirit or a mild solvent-based cleaner.
Do Not:
- Do not soak any areas of the locker
- Do not get the power cassette or the locker sockets wet
- Do not soak any area with solvent
- Do not use solvent cleaners on the locks
Cleaning Fans
Depending on the model, your ChargeLite™ unit may have thermostatically controlled fans. Under normal operating temperatures, the fan is off. The fan will come on when the unit exceeds a pre-set temperature and continue to run until the temperature lowers below its lower set point. If the temperature rises, the unit will shut down automatically and sound an audible alarm.
Over time, dust and debris can partially block the fan and ventilation holes, preventing maximum airflow and causing the unit not to cool as expected. It is recommended that the fan blades and ventilation holes be checked and cleaned at least once every three months or if you suspect an increase in normal running temperature or if the unit shuts down.
To clean the fan and ventilation holes, carefully agitate the dust with a suitable dry brush and extract the loose particles with a vacuum cleaner. Additionally, the ventilation holes can be wiped with a "damp" (not wet) cloth. Do not use a damp (or wet) cloth on the fan housing, as the primary charging electrics are behind.
Health & Safety
All products manufactured by LapSafe® have been thoroughly tested and certified by an authorised and INDEPENDENT testing house before sale. Full CE and UKCA compliance, which includes the requirements of LVD and EMC directives, is a STANDARD FEATURE of any solution manufactured by LapSafe®, as are many more built in safety features. CE and UKCA Marking can be found on the product serial number plate, usually at the lower rear of the cabinet. A CE/UKCA Declaration of Conformity Certificate is issued with each product in the User Guide Pack.
Please review the following safety information:
At no time are the service areas of the ChargeLite™ to be opened by anyone other than an authorised person.
Before removing or accessing any service area, unplug or turn the power to the unit off.
WARNING: Hand and power tools can be dangerous when used incorrectly and the user should be trained to use work equipment and have an understanding of the HSE leaflet, ‘using work equipment safely’ (INDG229)
Please also refer to the manufacturers documentation for specific information about the equipment you are using.
The above list is not exhaustive.
Contact LapSafe® should you have any concerns.
Modifications
DO NOT MAKE ANY MODIFICATIONS TO THE WIRING OF YOUR CLASSBUDDY™
The power management cassette protects both users and devices against potentially harmful in-rush currents at start up, residual currents after power down and over current when in use.
Any modification to the power management system will negate your warranty and could make your ChargeLite™ dangerous to use.
Warranty
The ChargeLite™ range comes with Lifetime Parts & Labour Warranty. Full details of our warranty are on our website: lapsafe.com/warranty
Your warranty must be activated. To activate your warranty visit our website: www.lapsafe.com/activate
Explanation of Symbols
|
Electrical Hazard - HIGH VOLTAGE WARNING This unit is recommended for use with a switched wall socket. |
|
|
Caution Before connecting or removing the mains plug, ensure that the wall socket is in the 'off' position. |
|
|
No Liquid Avoid all contact with liquids |
|
|
Refer to User Manual See User Manual for guidance |
|
| Protective Earth Icon | |
|
CE certification mark This product is CE Certified |
|
|
UKCA certification mark This product is UKCA Certified |
Disposal
The crossed-out wheelie-bin symbol on your product, battery, literature or packaging reminds you that all electrical and electronic products and batteries must be taken to separate collections at the end of their working life. Do not dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority.
Useful Links
|
Support Enquiries: |
|
|
Warranties:
Warranty Activation: www.lapsafe.com/activate-warranty
Warranty Details: www.lapsafe.com/warranty
|
|
|
Replacement Keys:
|
LapSafe® Self-Service Solutions Ltd
3 Wakes Hall Business Centre,
Wakes Colne, Colchester, Essex
CO6 2DY
