Introduction
NOTE: This manual also covers ClassBuddy™ branded products.
Congratulations and thank you for purchasing a ChargeLite™ Desk unit from the LapSafe® ChargeLite™ range.
This manual guides you through the set-up and correct use of your product.
Your ChargeLite™ Desk comes with a lifetime parts and labour warranty which you will need to activate immediately.
For instructions on how to install your ChargeLite™ Desk unit please refer to your installation guide supplied with your unit, or by following the Installation Guide here for further information.
The ChargeLite™ Desk comes in two variations:
- AC Adapter Charging Model
- USB-C Charging Model
Box Contents:
1 x ChargeLite™ Desk
1 x Installation guide
1 x Cable management pack (cable ties + clips)
1 x Set of keys
1 x Plug timer
1 x Box of USB-C charging cables (USB-C Model only)
1 x PIN/MIFARE lock user guide (if PIN or MIFARE lock is fitted)
NOTE: This user guide applies exclusively to the ChargeLite™ Desk model. If you have purchased a different model in the ChargeLite™ range, please click the links to the following manuals below.
ChargeLite™ Trolley User Manual
ChargeLite™ Wall User Manual
ChargeLite™ Locker 32 User Manual
Power Requirements
AC Adapter
5A rated lead put per power strip
Input: AC 100-240V 13A
USB-C
800W maximum
Input: AC 100-240V 13A 50/60HzAC
Important Actions
Upon delivery of your new ChargeLite™ Desk you must:
Activate Your Warranty:
Visit lapsafe.com/activate to activate your Lifetime Warranty.
Your warranty will not be valid unless you do this.
Take Note of Serial Numbers:
Take a note of your product serial number, located on the silver plate on the back of the unit. The product serial number begins with CL (on older models it will begin with 'CB').
Store this number in a safe place. You will need to quote this number for all enquiries relating to your unit.
Take Note of Key Numbers:
Take a note of your key number located on the key itself (figure 1). Store this number in a safe place. You will need to quote this number if you wish to order additional keys.
Read Health & Safety Information:
Read the section on Health & Safety.
PIN & MIFARE® locks
If you have PIN or MIFARE® locks fitted please refer to the relevant user guide below.
If you have PIN locks fitted, refer to the user guide here: KL1000 G3
If you have MIFARE locks, refer to the user guide here: KL1000 RFID
Get started with your ChargeLite™ Desk

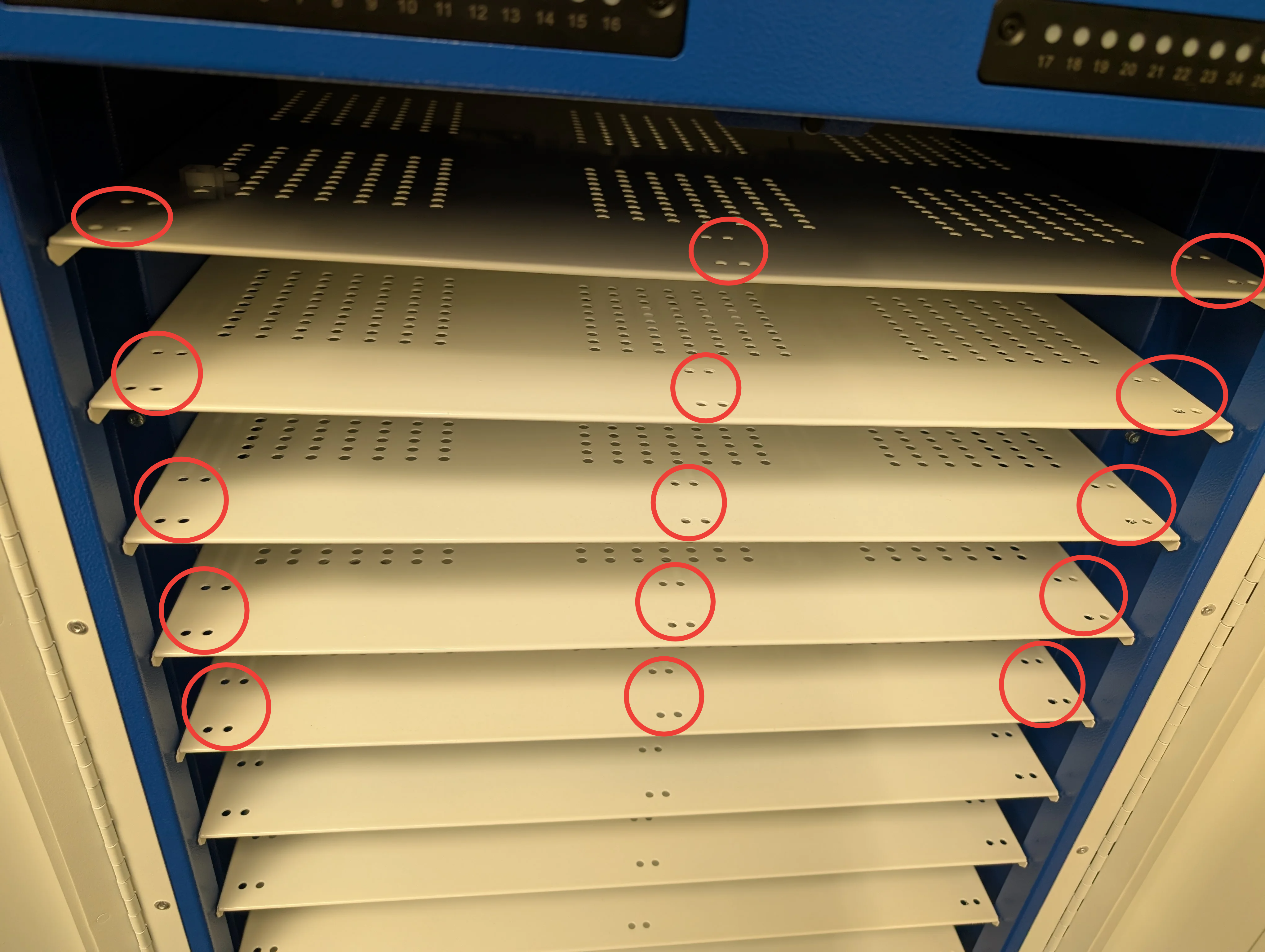

NOTE: There are ventilation holes through the sides of the ChargeLite™ Desk, take care that none of these holes are obstructed.
The front doors of your ChargeLite™ Desk are unlocked using the key with the white key cover.
The front doors are for everyday working access to the cabinet. The key can be removed once the door is open, this will prevent the door from closing fully whilst it is unlocked.
The rear panel can be removed by removing the 10 screws around the edge of the panel (See the Installation Section for more details).
The rear panel should not be considered as day-to-day access to the cabinet but used for initial setup by a responsible/authorised person.
Set Up: AC Adaptor Model
Please ensure the cabinet is unplugged when you are loading AC adaptors in the ChargeLite™.
Open both front doors and remove rear panel (See install guide)
You will find power strips for your AC adaptors in the rear compartment
There are two styles of AC adaptor:
In-Plug AC Adaptor - where they plug directly into a socket and the charging lead goes directly to the device (figure 5)
In-Line AC Adaptor - where they have a mains lead between the power socket and the AC adaptor and then a charging lead going to the device. (figure 6)
For ‘in-plug’ AC adaptors simply pass the charging lead onto a shelf.
For ‘in-line’ AC adaptors you have the choice to pass the mains onto the shelf and place the adaptor on the shelf with your devices or to leave the AC adaptor in the rear compartment and just pass the charging lead onto the shelf.
We provide both cable ties and cable clips to help with cable management and we recommend that the charging lead is secured to the shelf in a suitable position in order to prevent it being pushed off the shelf.
Repeat these steps until your desk unit is fully loaded.
NOTE: Maximum loading 100Watt (rated capacity) per socket. (400Watts (rated capacity) per power strip).
As standard, Type G UK power sockets are installed, but there is a manufacturing option to have Type C/Type F Schuko Euro power sockets.
Set Up: USB-C Model
Open both front doors and remove rear panel (See install guide)
You will find the USB-C power bank installed vertically in the back.
USB-C to USB-C charging leads are provided in box(es) inside the rear service area of the unit. (figure 6) Remove the cables from the packaging.
Unpack the cable clips (figure 7)
Install the white cable clips into the bays by pushing them into the holes provided at the front of the shelves. Different positions are available in holes at the sides and centre of the locker bays.
Plug the straight end of the USB-C connectors into the the power banks - the right-angled USB-C connectors will connect the devices on the shelves. (figure 8)
Thread the cables through the mounting bracket onto the shelves.
Thread the cables through the white clips you placed previously. (figure 9)
These clips hold the cables in place and stop the leads from being pushed off the shelf.
Plug the devices in.
Check that the LED display turns on when the device is plugged in.
LED Charge Status
The LED charge status indicator bar is located above the doors of the ChargeLite™ (figure 10). The LEDs on this bar display the following:
- OFF - The LED is turned off when no device is plugged in/charging
- RED - The LED is red when the device is charging
- GREEN - The LED is green when the device is fully charged or near full charge.
The USB-C charging cables also have LEDs at the ends of the USB-C connectors
- RED - The LED on the USB-C charge cable is red when the device is charging
- BLUE - The LED on the USB-C charge cable is blue when the device is fully charged
Thermal Trip
In the United Kingdom the detachable mains lead carries a fuse for the protection of users.
In the event that your ChargeLite™ Desk has been installed with no wall plug the power management cassette also has a resettable thermal trip. This trip acts in much the same way as a fuse to protect users and it can be re-set. The thermal trip is mounted on the back edge of the power management cassette in the top of the side compartment.
When the trip has operated there will be no power to the sockets and the centre button of the trip will be extend by approximately 12mm.
In the event of a trip:
- First switch off the power supply and then check if the reason for the tripping is apparent and If possible correct the issue.
- Allow at least 60 seconds after it has tripped and do not reset the trip with the mains power switched on.
- Press the centre of the button back into the trip. When re-set the button will stay pressed in when you release your finger.
- Restore power to the power cassette and check that the trip remains set.
- If the trip operates again you should first switch off the mains and then switch off or unplug everything in the locker sockets.
- Re-set the trip (items 2 and 3 above)
- Restore power to the power cassette and check that the trip remains set.
- Then, one by one, re-plug everything into the locker sockets, switch on and check that the trip remains set.
If the trip will not re-set or it continues to trip, there may still be a fault somewhere or the trip may have developed a fault. Please contact Support on (+44) 01787 226166 or support@lapsafe.com
Timer
View the timer user manual here
ChargeLite™ Desk lockers have a plug in timer included as standard. This allows you to set active usage periods for the locker, to prevent using excess power when not in use. You can locate this on the top AC adapter block. Please remove this, plug the timer into the wall and then plug the locker charging lead into the timer.
On initial delivery of your wall locker the LCD display on the timer may not be illuminated. This is because the timer needs time to charge before use. It is recommended to charge the timer for 14 hours after the initial installation to charge the memory back-up battery.
Note: On older models, the timer was offered as an additional option.
On older ChargeLite™ Models, the timer can be found located behind an oval plate on the rear of the unit.
You can view the manual for the legacy timer module here
ChargeLite™ Options
Network Connectivity

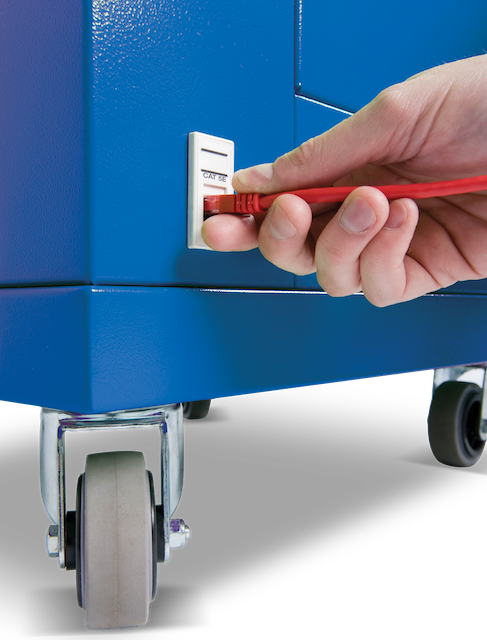

If your ChargeLite™ features network connectivity, you can plug the ChargeLite™ into your network by connecting a standard network cable into the auxiliary point on the back.
Data Transfer (DTK)
If your purchase includes DTK your ChargeLite™ will be supplied with sufficient network cables to connect each device to the installed network switch.
Health & Safety
All products manufactured by LapSafe® have been thoroughly tested and certified by an authorised and INDEPENDENT testing house before sale. Full CE and UKCA compliance, which includes the requirements of LVD and EMC directives, is a STANDARD FEATURE of any solution manufactured by LapSafe®, as are many more built in safety features. CE and UKCA Marking can be found on the product serial number plate, usually at the lower rear of the cabinet. A CE/UKCA Declaration of Conformity Certificate is issued with each product in the User Guide Pack.
Please review the following safety information:
At no time are the service areas or the rear panel of the ChargeLite™ Desk to be opened by anyone other than an authorised person.
Before removing or accessing any service area, unplug or turn the power to the unit off.
WARNING: Hand and power tools can be dangerous when used incorrectly and the user should be trained to use work equipment and have an understanding of the HSE leaflet, ‘using work equipment safely’ (INDG229)
Please also refer to the manufacturers documentation for specific information about the equipment you are using.
The above list is not exhaustive.
Contact LapSafe® should you have any concerns.
Care & Maintenance
Do:
- Lock your ChargeLite™ Desk when not in use keep your keys in a safe place and not in the same room as the desk unit
- Read the Health and Safety guidelines in the user guide and share this information with all users
- Activate your warranty at on the LapSafe® website
- Unplug charging leads before removing devices out of the locker
Do Not:
- Do not leave keys in the doors
- Do not remove doors
- Do not try to modify the ChargeLite™ Desk in anyway without contacting LapSafe® first to check that it is safe to do so. If you have any queries, please contact us through any means below in the Useful Links section.
Cleaning
Do:
- Your ChargeLite™ has a powder coat finish which is very durable and can be wiped clean using a mildly soapy cloth.
- To remove more stubborn marks or perhaps an adhesive residue you can use a gentle solvent such as white spirit or a mild solvent-based cleaner.
Do Not:
- Do not soak any areas of the locker
- Do not get the power cassette or the locker sockets wet
- Do not soak any area with solvent
- Do not use solvent cleaners on the locks
Cleaning Fans
Depending on the model, your ChargeLite™ unit may have thermostatically controlled fans. Under normal operating temperatures, the fan is off. The fan will come on when the unit exceeds a pre-set temperature and continue to run until the temperature lowers below its lower set point. If the temperature rises, the unit will shut down automatically and sound an audible alarm.
Over time, dust and debris can partially block the fan and ventilation holes, preventing maximum airflow and causing the unit not to cool as expected. It is recommended that the fan blades and ventilation holes be checked and cleaned at least once every three months or if you suspect an increase in normal running temperature or if the unit shuts down.
To clean the fan and ventilation holes, carefully agitate the dust with a suitable dry brush and extract the loose particles with a vacuum cleaner. Additionally, the ventilation holes can be wiped with a "damp" (not wet) cloth. Do not use a damp (or wet) cloth on the fan housing, as the primary charging electrics are behind.
Warranty
The ChargeLite™ range comes with Lifetime Parts & Labour Warranty. For full warranty details visit our website: www.lapsafe.com/warranty
Your warranty must be activated. To activate your warranty visit our website: www.lapsafe.com/activate
Explanation of Symbols
|
Electrical Hazard This unit is recommended for use with a switched wall socket. |
|
|
Caution Before connecting or removing the mains plug, ensure that the wall socket is in the 'off' position. |
|
|
No Liquid Avoid all contact with liquids |
|
|
Refer to User Manual See User Manual for guidance |
|
| Protective Earth Icon | |
|
CE certification mark This product is CE Certified |
|
|
UKCA certification mark This product is UKCA Certified |
Disposal
The crossed-out wheelie-bin symbol on your product, battery, literature or packaging reminds you that all electrical and electronic products and batteries must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority.
Useful Links
|
Support Enquiries: |
|
|
|
|
|
Replacement Keys:
www.lapsafe.com/support/keys |
LapSafe® Self-Service Solutions Ltd
3 Wakes Hall Business Centre,
Wakes Colne, Colchester, Essex;
CO6 2DY
